Graphite PTFE Packing with Silicon Rubber Core is Braided from from pure expanded PTFE yarn with graphite powder and silicon rubber core
With professional Graphite PTFE Packing with Silicon Rubber Core factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China Graphite PTFE Packing with Silicon Rubber Core manufacturers and suppliers.

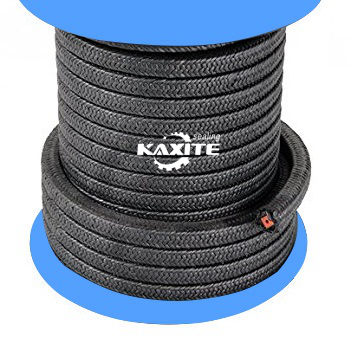

Style KXT P205 Graphite PTFE Packing with Silicon Rubber Core
Graphite PTFE Packing with Silicon Rubber Coreis Braided from from pure expanded PTFE yarn with graphite powder and silicon rubber core.
Graphite PTFE packing with silicon rubber core designed to seal large rotating equipment like mixers and agitators. Abraided packing with silicone
rubber core will offer a combination of the highest chemical resistance and temperature. The outside braided yarn is a combination of graphiteptfe
yarn and oil to promote the maximum sealing and wear resistance
Core Material: Hollow silicon rubber core, solid silicon rubber core or other rubber
Advantages
• Higer chemical resistance and working temperature with silicon rubber core
• Wide range of applications for varies of industrial areas
• Graphite ptfe increase thermal conductivity
•Longer using life which can reduce cost
•Low coefficient of friction
Application
•Used in almost all chemical applications
• Good pump and valve packing hydrocarbons steam, solvents, oils
• Hydrocarbons
• Solvents
• Oils
Main Features:
|
Pressure |
Rotary pump |
20bar |
|
Reciprocating pump |
100 bar |
|
|
Static Sealing |
150 bar |
|
|
Rotary speed |
22 m/s |
|
|
Density |
1.5-1.6g/cm3 |
|
|
Temperature |
-200 ~ +290°C |
|
|
PH Value |
0-14 |
|
